FRAME Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready

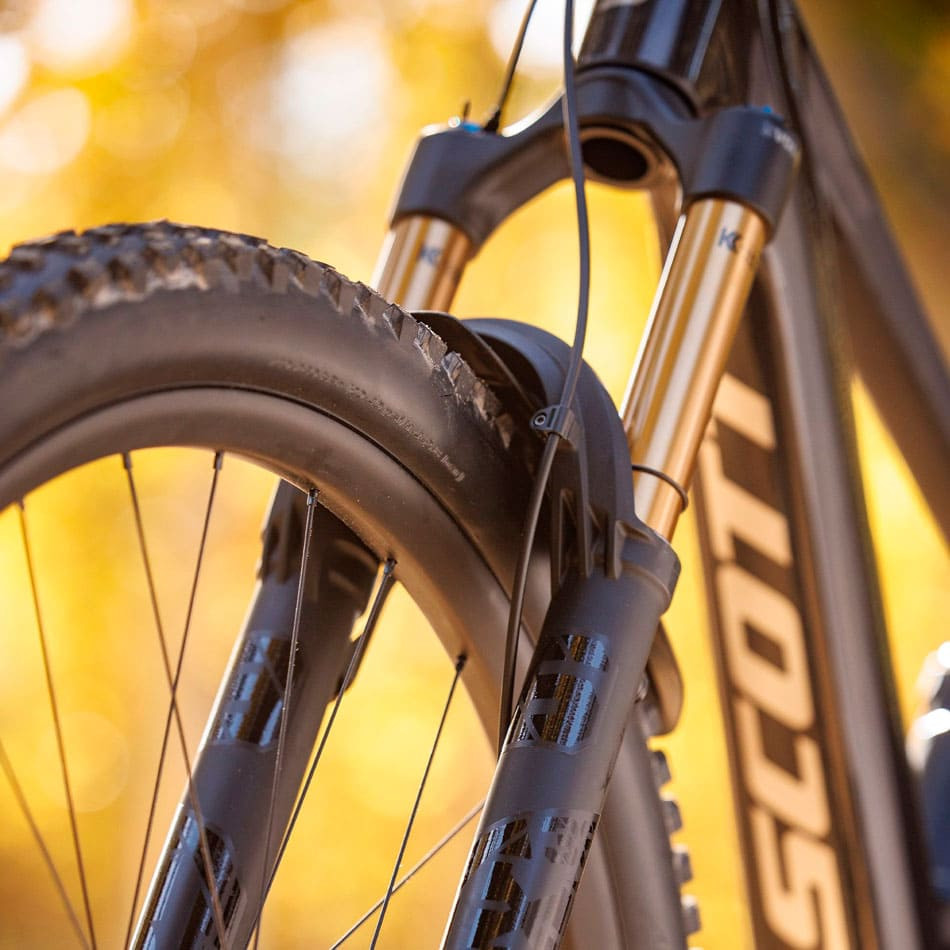

FOX 36 Float Factory Air / Kashima FIT4 FORK 3 modes with low Speed adj. / Kabolt 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Lockout 160mm travel
FOX NUDE 6T Factory EVOL Trunnion SCOTT custom SHOCK w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Adj. / Custom large Air volume / Kashima / Reb. Adj. Travel 155-100-Lockout / T185X55mm
SCOTT TwinLoc 2 Technology Suspension REMOTE CONTROL & Dropper Remote 3 Suspension modes

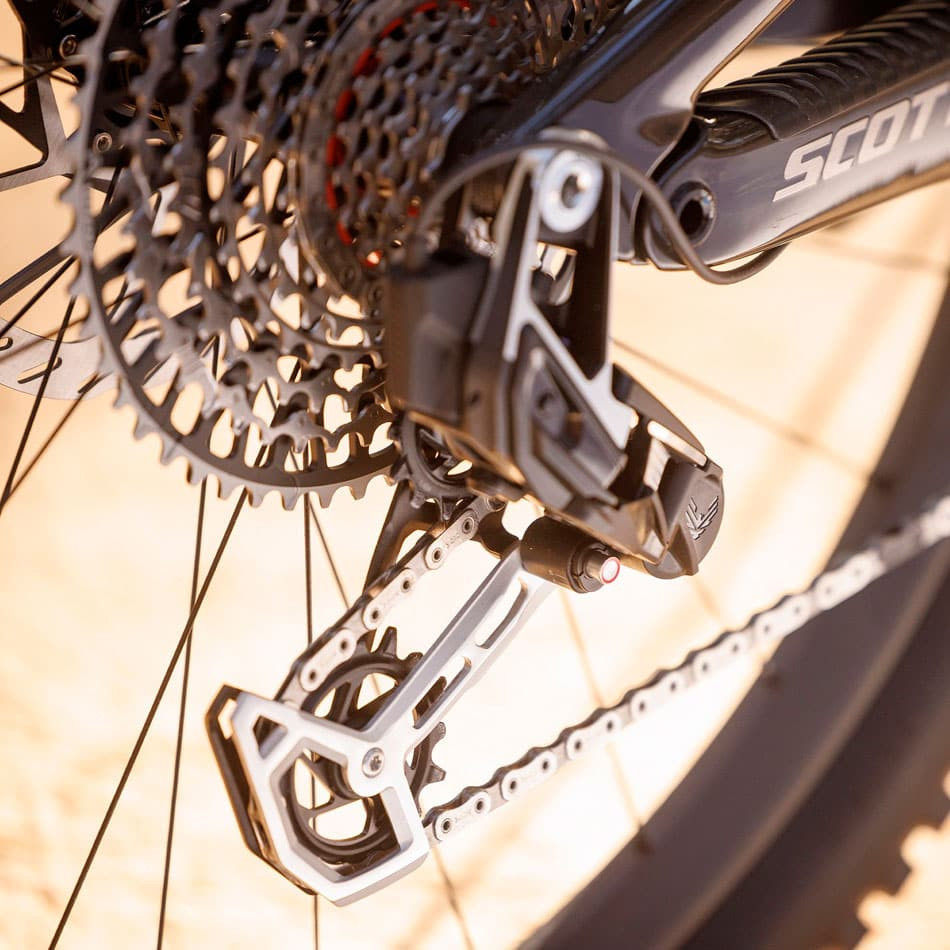

SRAM XX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
SRAM AXS Pod Ultimate Controller LEVERS
CRANKS FSA Carbon crankset / 175mm / 34T
CHAIN GUIDE e*thirteen / e*spec Slider
PLATE Scott custom spider / SRAM Eagle Transmission 34T chainring
Shimano CN XX Eagle Transmission CHAIN
SRAM XX Eagle XS 1297 Transmission 10-52 CASSETTE
BRAKES SRAM Code Ultimate Stealth 4-Piston Disc; brake disc SRAM HS2 Rotors F, R 200mm
HANDLEBAR Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips
SEATPOST Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm
SADDLE Syncros Tofino SL Regular 1.0 Carbon rails
WHEELS Syncros Revelstoke 1.0S-30 CL F: 15x110mm R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
COVERS Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra
MOTOR TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

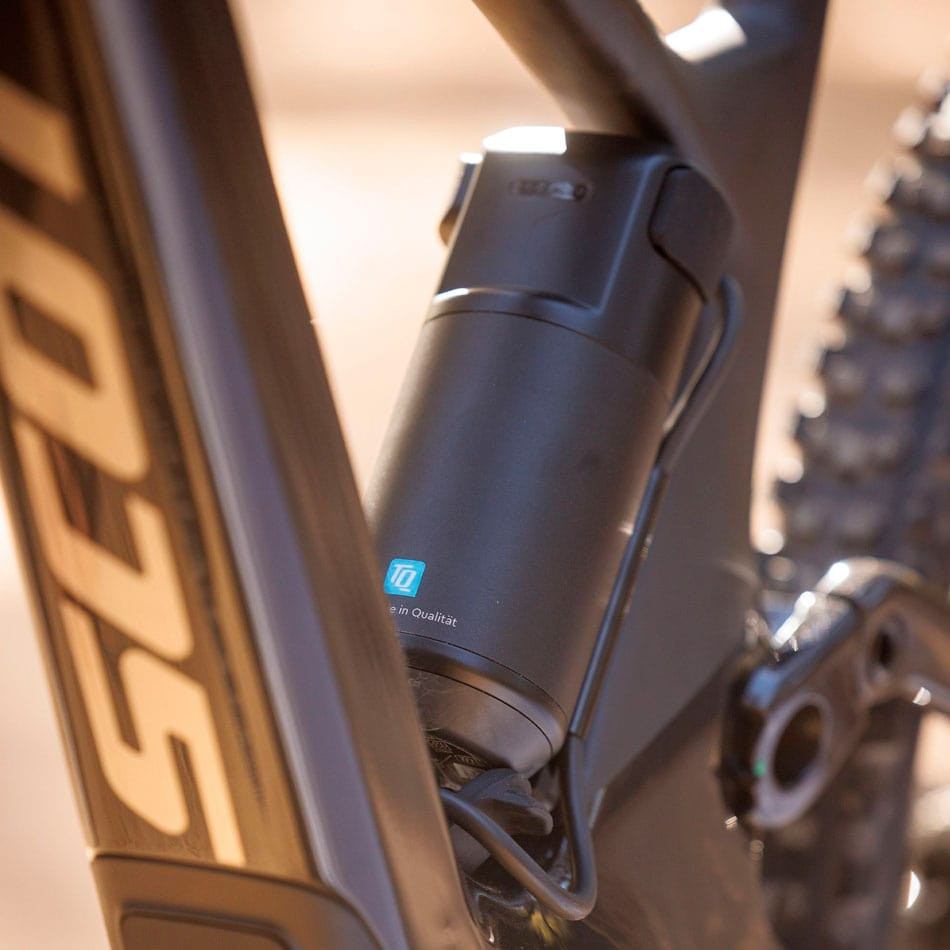

TQ Internal 360 Wh + Range Extender 160Wh BATTERY
TQ HPR DISPLAY Bluetooth / ANT+ / Dedicated Smartphone app
TQ CHARGER 100-240V-4A
NOTICE:
Some components may change from the manufacturer without prior notice
