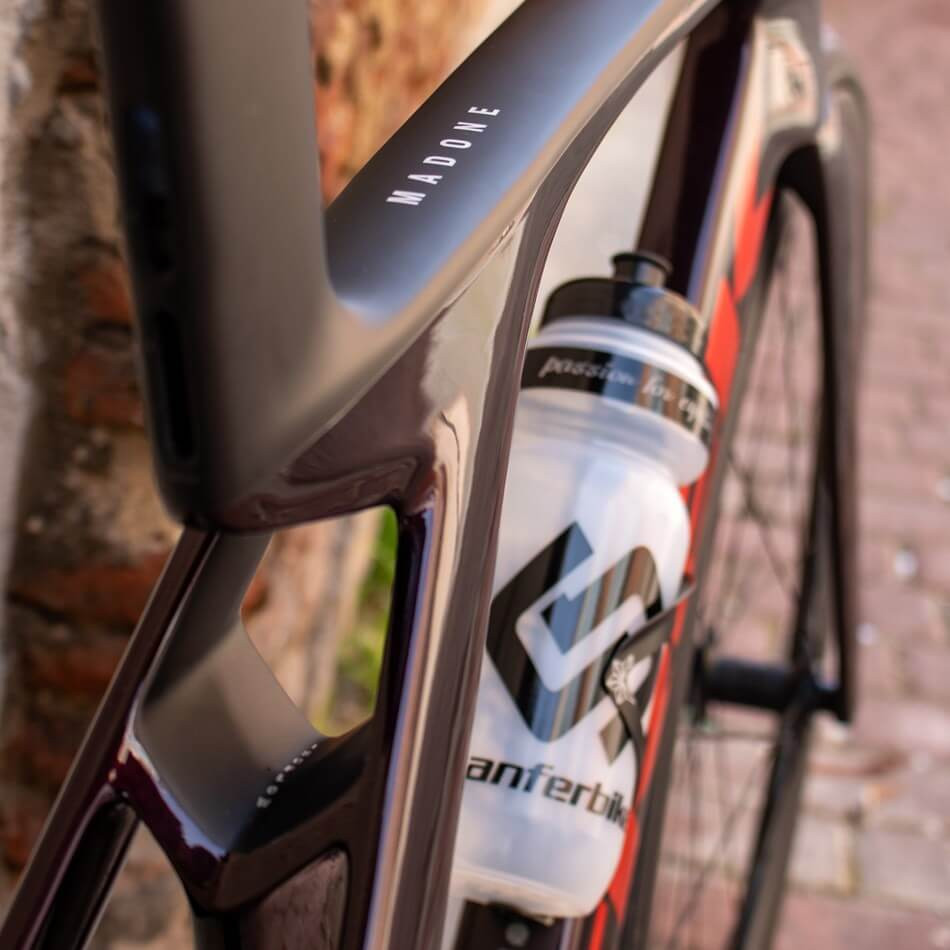

FRAME 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain guide, T47 bottom bracket, flat mount disc, 142x12 mm thru axle
Madone KVF full carbon fork , tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Bontrager Aeolus Elite 50 FRONT WHEEL, OCLV Carbon, Tubeless Ready, 100x12mm thru-axle
Bontrager Aeolus Elite 50 REAR WHEEL , OCLV Carbon, Tubeless Ready, 50 mm rim profile
TIRES Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c

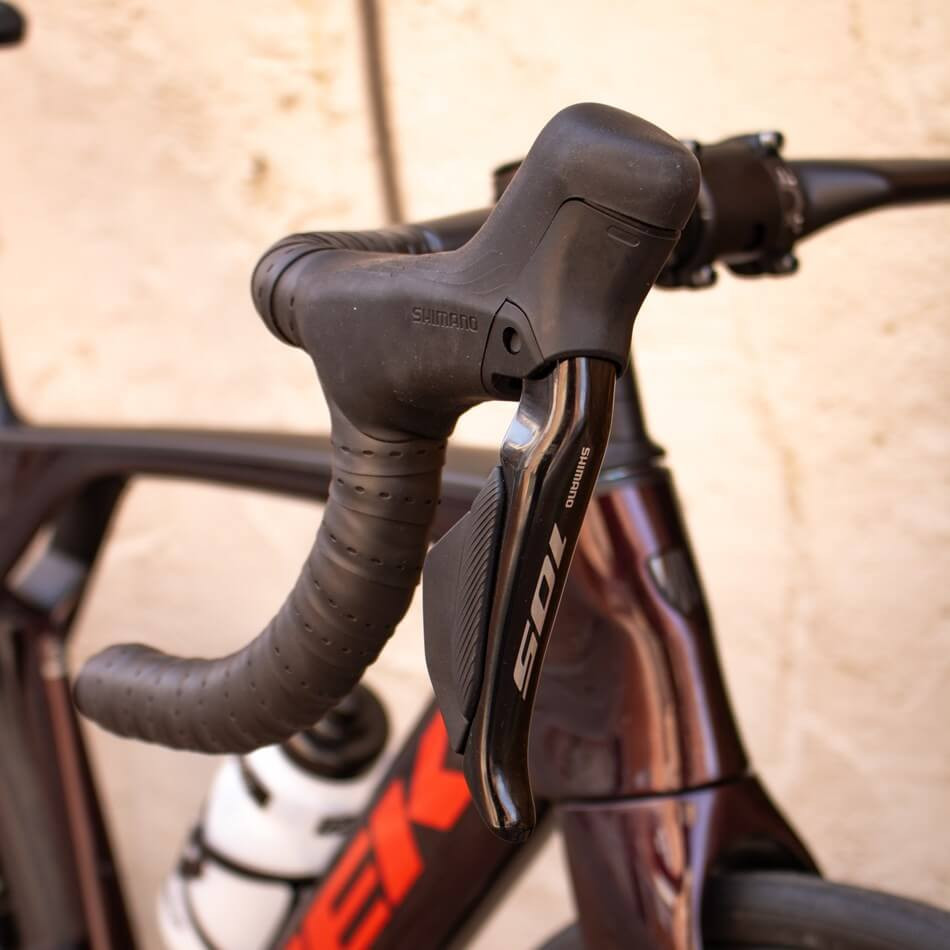

Shimano 105 R7170 GEAR LEVER , 12 speeds
Shimano 105 R7150 Di2 FRONT DERAILLEUR , weld-on type, lower anchor

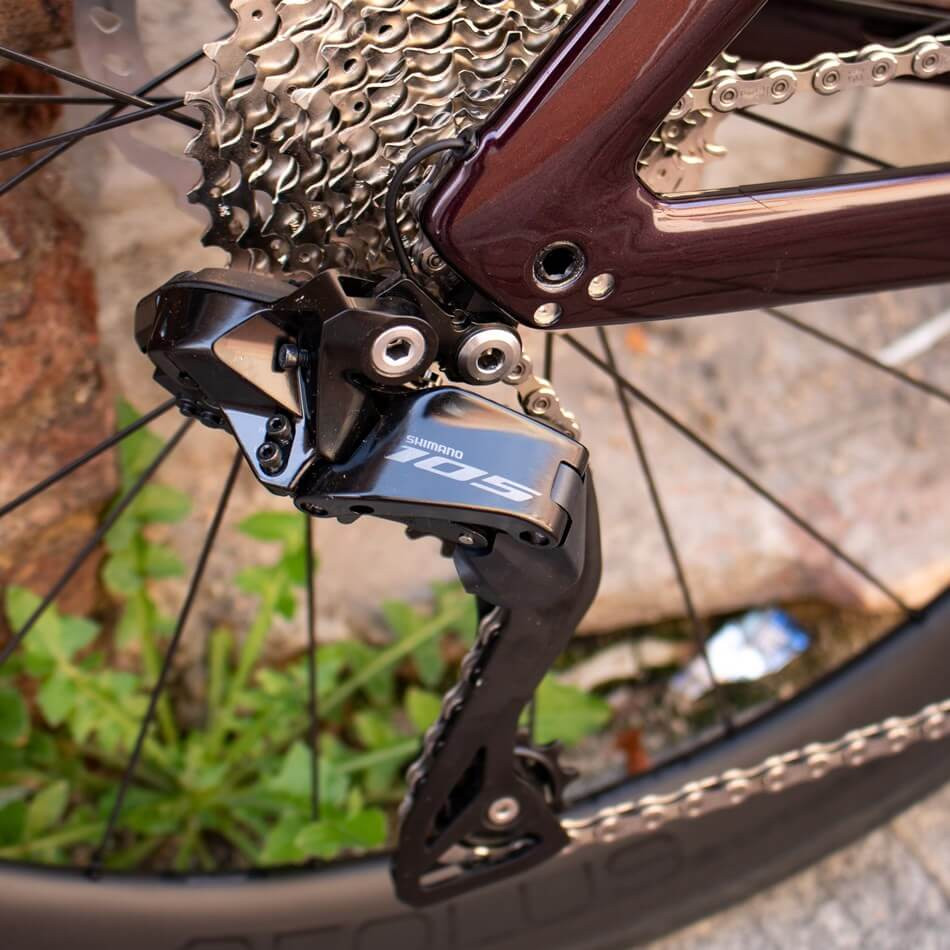

SHIPMENT Shimano 105 R7150 Di2, 34T max cog
Shimano 105 7101 CASSETTE , 11-34, 12 speeds
Shimano SLX M7100 CHAIN , 12 speeds
SADDLE Bontrager Aeolus Comp, steel rails, width 155 mm (Size 47, 50, 52); width 145 mm (Size 54, 56, 58, 60, 62)
POSTPASS Madone aerodynamic carbon integrated seatpost, integrated light mount, 0mm offset, short length (Size 47, 50, 52, 54); long length (Size 56, 58, 60, 62)
HANDLEBAR Bontrager RSL Aero, OCLV carbon, 31.8 mm, Di2 internal routing, 80 mm rise, 124 mm drop, 35 cm control width, 38 cm bar end width (Size 47); 40 cm (Size 50, 52); 42 cm (Size 54, 56); 44cm (Size 58, 60, 62)
STEM Trek RCS Pro, -7 degrees, 70mm length (Size 47); length 80 (Size 50); length 90mm (Size 52, 54); length 100mm (Size 56, 58); length 110mm (Size 60, 62)
BRAKES Shimano RT70, centerlock, 160 mm
WEIGHT Size 56 - 8.40 kg
