FRAME 500 Series OCLV Carbon, Full System Foil tube shapes, IsoFlow seat tube, RCS headset system, electronic or mechanical cable routing, removable aero chain guide, T47 bottom bracket, flat mount disc, UDH, thru axle 142x12mm
FORK Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
FRONT WHEEL Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready, 100x12 mm thru axle
REAR WHEEL Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12 speed hub, 142x12 mm thru axle
Shimano Ultegra R8170 Di2 GEAR LEVER , 12 speed

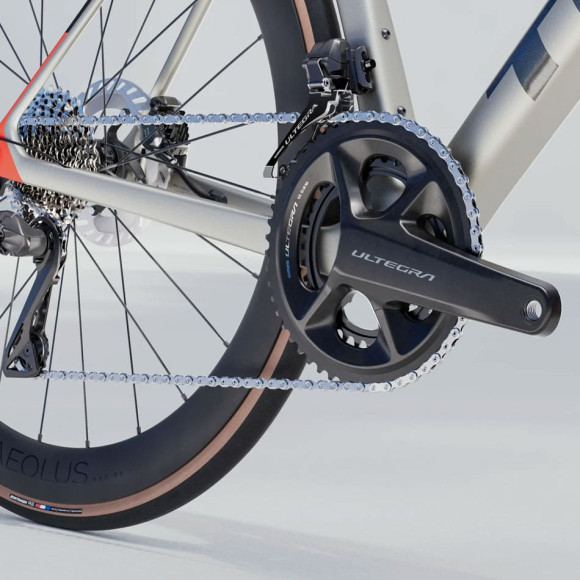

Shimano Ultegra R8100 PEDALIER , 50/34, length 165 mm (Size XS, S); length 170mm (Size M); length 172.5mm (Size ML, L); length 175mm (Size XL)
SADDLE Bontrager Aeolus Elite, austenite rails, width 155 mm (Size XS, S); width 145 mm (Size M, ML, L, XL)
SEATPOST Madone aerodynamic carbon integrated seatpost, 0mm offset, short (Size XS, S, M); long (Size ML, L, XL)

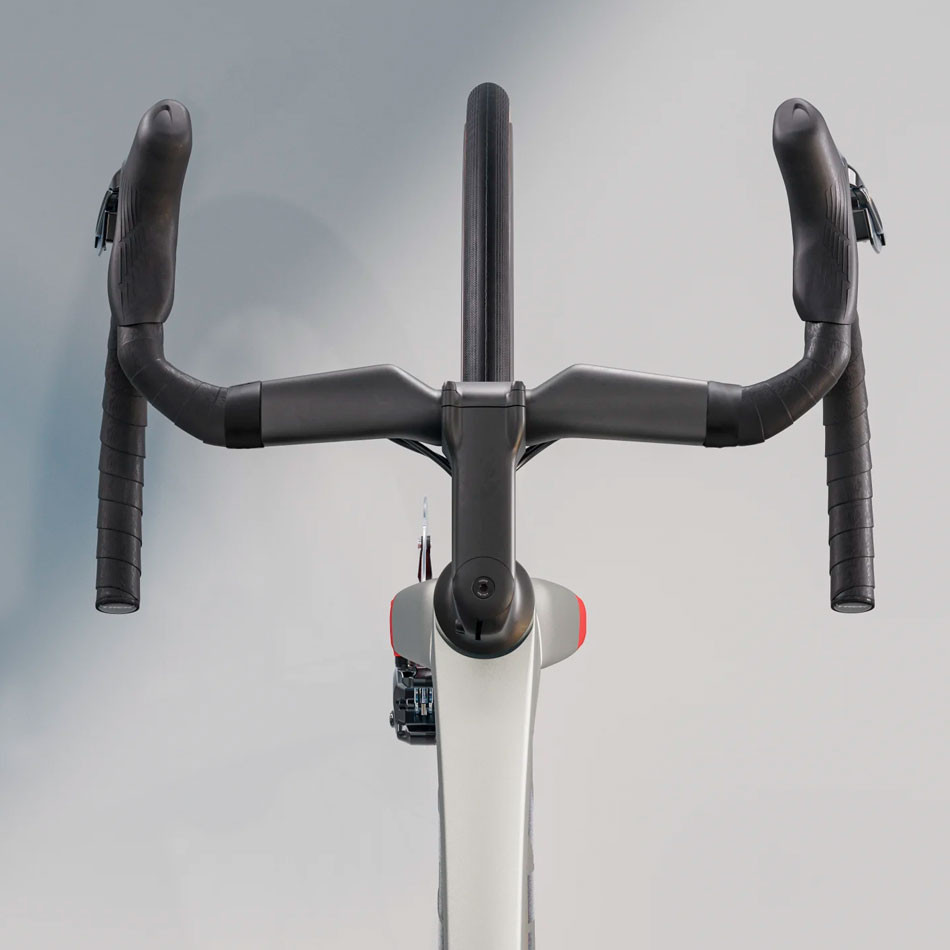

HANDLEBAR Bontrager RSL Aero, OCLV carbon, 31.8 mm, Di2 internal routing, 80 mm rise, 124 mm drop, 35 cm lever width, 38 cm handlebar end width (Size XS); lever width 37 cm, handlebar ends width 40 cm (Size S); lever width of 42 (Size ML, L); lever width 41 cm, handlebar ends width 44 cm (XL size)
STEM Trek RCS Pro, -7 degrees, 80mm length (Size XS); length 90mm (Size S, M); length 100mm (Size ML, L); length 110mm (Size XL)
Shimano CL800 BRAKE DISC , centerlock, 160 mm
APPROXIMATE WEIGHT: Size ML: 7.88 kg (with sealant and without tubes)
